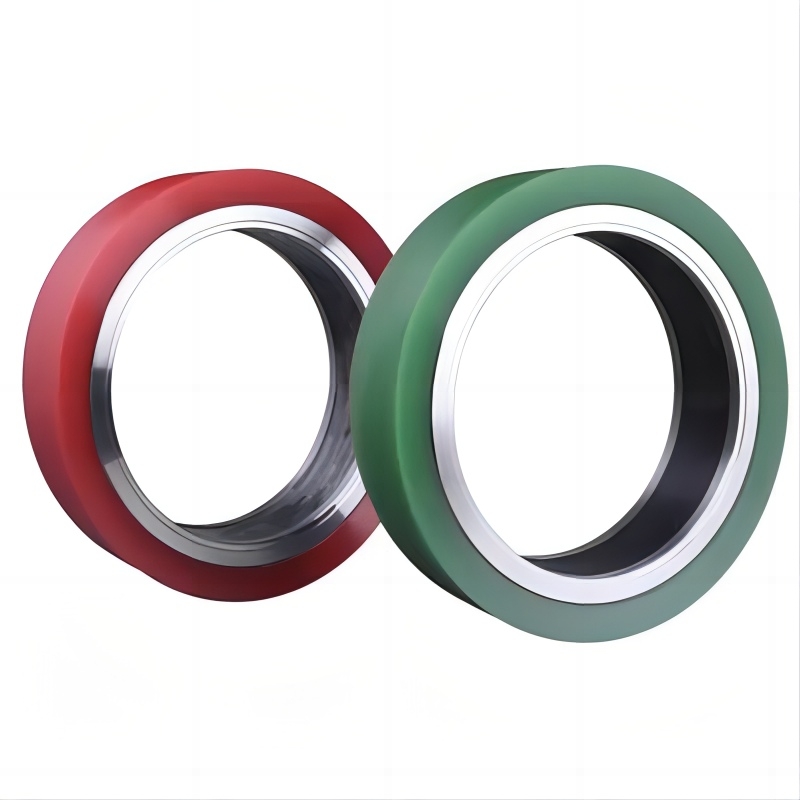

Rubber slitter rings
Name:Rubber slitter rings
Type:Slitter Rubber Bonded Stripper Rings
Material:S45C+PU Or SUJ2(52100)+PU
Application:Slitter Machine Assembly Replacemen
Hardness:75-85HA
Inquiry

Product Description

PRODUCT DESCRIPTION

LiZhun manufactures rubber bonded stripper rings made of hardened alloyed tool steel like EN9/EN 31. The stripper rings are used together with the spacers for the exact positioning of rotary slitter knives on the slitter arbor and for precisely adjusting the knife clearance. Graduated in thickness from 3 to 100 mm (in exceptional cases up to 250 mm) Different colors Special dimensions of steel cores for trimming systems
Divided spacers Excellent oil and abrasion resistance



BrandLiZhun
Country of OriginChina
MaterialS45C+PU or SUJ2(52100)+PU
Thickness tolerance+- 0.002
Diameter tolerance+0.01
Flatness≤0.003
Parallelism≤0.003
Concentricity0.02
Hardness75-85HA
Packagingwooden box with anti-rust film inside
Applicationslitter machine assembly
